Most ducted system owners use two zones and pay for eight. Here's how zoning actually works, how many zones your home needs, and why using them properly is the single most impactful thing you can do for both your comfort and your electricity bill.
Quick Summary
A zone is a group of rooms controlled by a single motorised damper in your ductwork. When a zone is turned off, the damper closes — air goes only to active zones, reducing the compressor load and cutting your electricity bill. Most 3–4 bedroom Sydney homes need 4–6 zones. A zone controller (keypad or app) lets you adjust each zone independently.
What is a ducted air conditioning zone?
Quick Answer A zone is a section of your home's ductwork controlled by a motorised damper. Turn a zone off at the controller, and the damper physically closes — blocking airflow from reaching the vents in that area. Turn it on, and the damper opens.
Your ducted system's indoor unit pushes conditioned air through a network of ducts running through your ceiling cavity. At various branch points, motorised dampers sit inside the duct. Each damper is linked to your zone controller. When you switch a zone off, the damper closes. The system's remaining capacity is directed entirely to the active zones — which get better airflow and reach set temperature faster.
The outdoor compressor modulates its output based on how many zones are active and how far the air temperature is from the setpoint. This is what makes zoning so effective for reducing running costs: less demand from the home = less work from the compressor = less electricity consumed.
How many zones does my home need?
Quick Answer Most 3–4 bedroom Sydney homes are well-served by 4–6 zones. More zones give you more granular control but add to upfront installation cost. Always keep at least 30–40% of zones open to avoid back-pressure in the ductwork.
| Home Size | Recommended Zones | Typical Zone Layout |
|---|---|---|
| 2-bed apartment | 2–3 zones | Living and kitchen, master bedroom, second bedroom |
| 3-bed home | 4 zones | Living and kitchen, master bedroom, two secondary bedrooms |
| 4-bed home | 5–6 zones | Living, optional alfresco or study, master, three secondary |
| 5-bed home | 6–8 zones | Full zone design — consult your technician for the right layout |
The right number of zones depends on your home's specific layout and how you use each space — not a formula. ClimaCool designs the zone layout during the site assessment to maximise both comfort and efficiency for the way you actually live in your home.
Smart zoning strategies that save money
Quick Answer Two simple zoning habits — daytime zoning and night-time zoning — can reduce your ducted running costs by 30–50% over a summer season.
- Daytime mode: Living areas and kitchen on. Bedroom zones off during the day when unoccupied. This concentrates the system's output where you actually are.
- Night-time mode: Bedroom zones on. Living areas off. Running empty living zones through the night is common and unnecessary.
- Away mode setpoint: If you're out all day in summer, don't turn the system completely off — set a light away setpoint (e.g. 28°C on 1–2 zones). The home stays moderately cool and requires far less energy to return to your comfort temperature than a home that has been completely off in 35°C heat.
- Timer programming: Use your zone controller's timer to cool the bedroom zone for 30–45 minutes before bed, then switch to a light setpoint overnight. You stay comfortable; the system works less hard through the night.
The minimum open zones rule — and why it matters
This is the zoning mistake that causes the most damage to ducted systems: closing too many zones at once.
Your ducted system's indoor unit generates a fixed volume of airflow. When zones are closed, that airflow has fewer paths to travel. If you close all but one zone on a large system, the air pressure in the ductwork rises significantly. This forces the system to work against back-pressure, which can cause the indoor unit's fan motor to work harder, trigger fault codes, damage dampers over time, and shorten the system's overall life.
The general rule: keep at least 30–40% of your zones open at any time. For a 4-zone system, that means always having at least 1–2 zones active. Check your system's installation manual or ask your technician for the specific minimum airflow requirement for your system.
Common zoning mistakes Sydney homeowners make
- Running all zones all the time: The most common inefficiency. If three of four zones are in empty rooms, you're paying to cool empty space.
- Closing all zones except one: As explained above — back-pressure risk that shortens system life.
- Not using the away setpoint: Turning the system completely off all day in summer and expecting it to cool the house quickly in the afternoon — the compressor runs flat-out and takes much longer than a light setpoint would have required.
- Ignoring the zone controller: Many homeowners set their zone layout once at installation and never adjust it. Seasonal and daily adjustments make a significant difference to running costs.
Zone controllers — from keypads to apps
Modern ducted systems come with a variety of controller options:
- Basic keypad: Wall-mounted, per-zone on/off with temperature setpoint. Standard in most installations.
- Smart zone controller: Touchscreen display, timer programming, zone temperature monitoring. Typically $300–$600 upgrade.

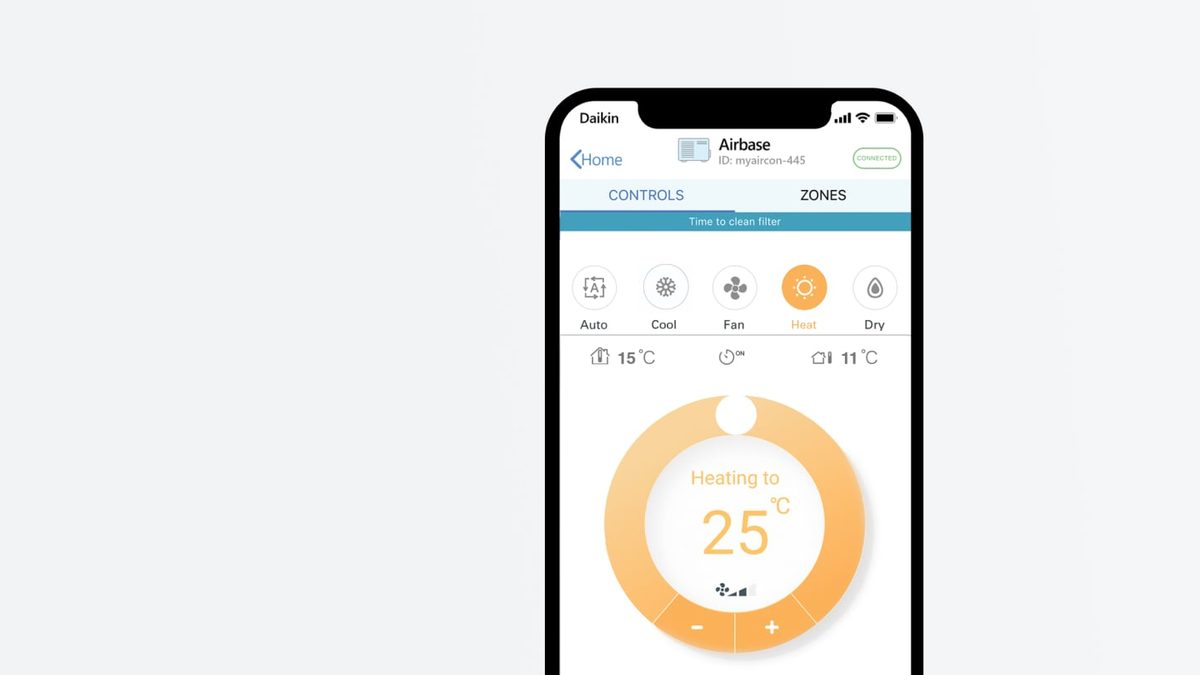

- Wi-Fi enabled controller: App-based control from anywhere. Daikin's MyAir, Fujitsu's anywAIR, and Mitsubishi Electric's MELCloud all offer app control with zone scheduling. Useful for controlling the system remotely before arriving home.
- Voice control integration: Most major Wi-Fi controllers now integrate with Google Home and Amazon Alexa for hands-free control.
Can I add more zones to my existing ducted system?
Yes, in many cases. If your current indoor unit has spare capacity, it is often possible to add zones by extending ductwork and installing additional motorised dampers. The cost of adding a zone typically ranges from $400–$1,500+ depending on duct access and complexity.
ClimaCool's additional zones service covers this in full. If you're unsure whether your system has capacity for additional zones, our technicians can assess it during a service visit.
Frequently Asked Questions
What is the difference between a zone and a vent in ducted air conditioning?
A vent (or grille) is the physical opening in the ceiling that delivers conditioned air into a room. A zone is a group of one or more vents controlled by a single motorised damper. When a zone is turned off at the controller, the damper closes — physically blocking airflow from reaching those vents.
Can I close all zones except one in my ducted system?
You should not close all zones except one. Closing too many zones creates excessive back-pressure in the ductwork, which forces the compressor to work harder, can trigger fault codes, and shortens the system's life. Most manufacturers specify a minimum number of open zones — check your system manual or ask your technician for your system's specific requirement.
How much money does smart zoning actually save on electricity?
In a typical 4-zone ducted system, running only 2 zones instead of all 4 can effectively halve the system's load and reduce electricity consumption proportionally. Over a Sydney summer, smart zoning can reduce ducted running costs by 30–50% compared to running all zones continuously.
Do all ducted air conditioning systems come with zoning as standard?
Not necessarily. Entry-level ducted installations may be supplied as single-zone (no zone control at all). Multi-zone systems require motorised dampers and a zone controller, which are standard on most modern residential ducted installs but should be explicitly confirmed in your quote before accepting it.
What is the difference between a zone controller and a thermostat?
A thermostat measures the temperature in one location and controls the whole system to maintain that temperature. A zone controller lets you set different temperatures and on/off preferences for each individual zone independently. Modern ducted systems often combine both functions in a single smart controller.
Can I control my ducted air conditioning zones from my phone?
Yes — most new ducted system zone controllers from Daikin, Fujitsu, and Mitsubishi Electric offer Wi-Fi enabled control via a manufacturer app. This allows you to adjust zones, set schedules, and monitor the system remotely. Retrofit Wi-Fi modules are available for some existing systems.
How much does it cost to add an extra zone to an existing ducted system in Sydney?
Adding a zone to an existing ducted system typically costs $400–$1,500+ depending on ductwork access, damper installation complexity, and whether the outdoor unit has sufficient spare capacity. ClimaCool's additional zones service covers the full assessment and installation.
